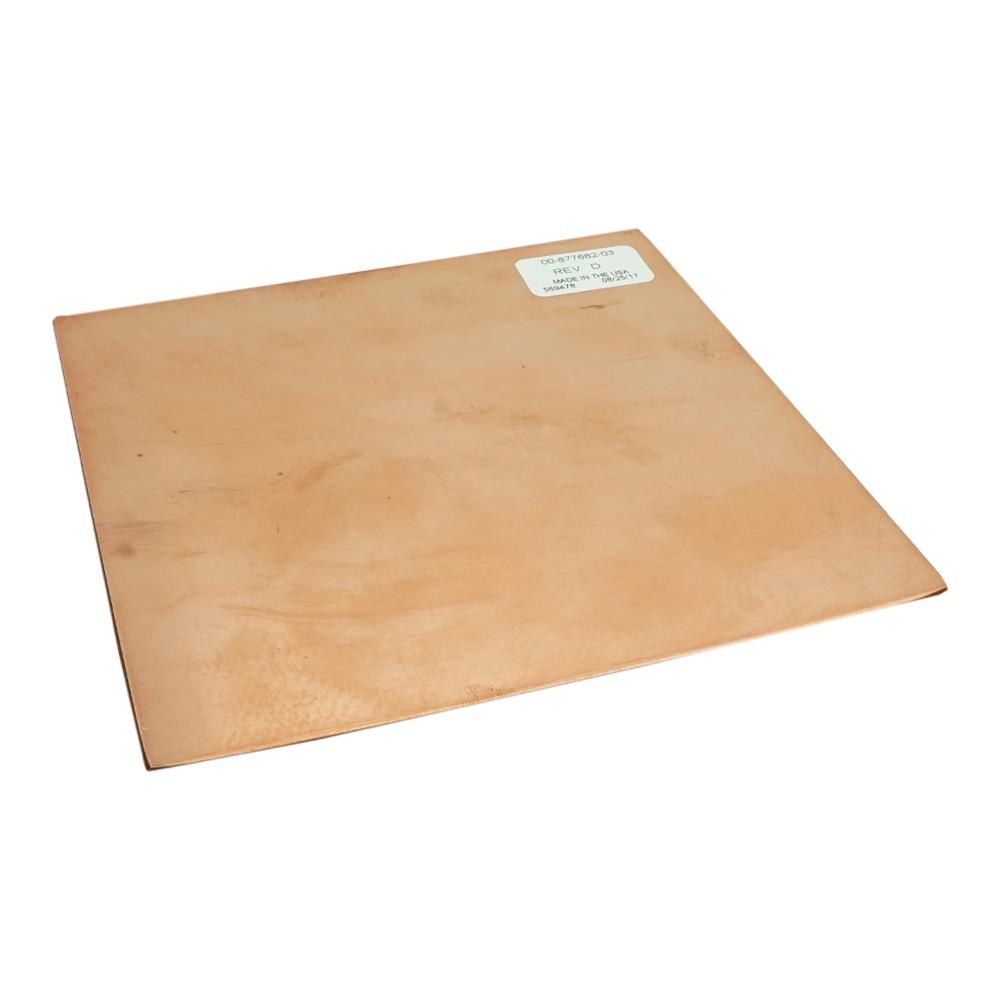

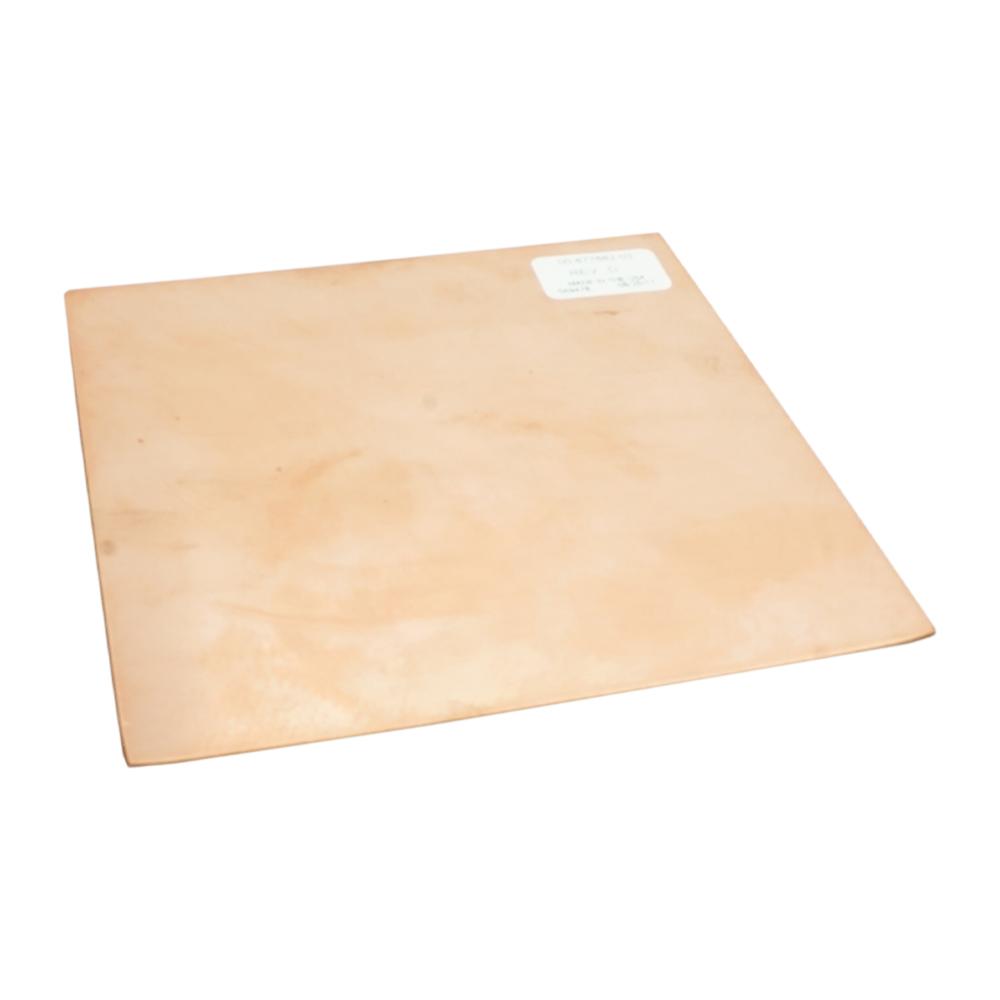

FILTER COPPER
| 00-877682-03 | |
| 00-877682-01 | |
| OEC Mobile C-Arms | |
| OEC 7900 | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- CDA-110 Specifications Copper Material
- Good Structural Strength
- Square Shaped
- Tolerances per ASME Y14.5-1994
제품 개요
Copper filters, made of CDA-110 Specifications Copper Material, are often used with fluoroscopy systems for high-dose procedures such as angiography and interventional applications. Low-energy X-Rays are often absorbed in patient tissue without being transmitted to the image receptor, which contributes to patient dose with little improvement in image quality. A penetrating ability of an X-Ray beam is determined by measuring half-value layer (HVL), where half-value layer is the thickness of this copper plate which reduces the beam intensity at a specified kilovolt peak (kVp). This 1mm thick square shaped copper filter is added to reduce low-energy X-Rays from the beam. The filter plate can be used with GE's OEC Mobile mini C-Arm and Vascular X-Ray (IGS740) systems.
추가 기능
- Good Dimensional Stability
- Attenuates Low Energy X-Rays
- GSPO
동등 품목:
아래는 동등한 부품에 대한 자세한 정보입니다. 하이퍼 링크가없는 부품은 참조 용으로 만 나열되며 온라인으로 구입할 수 없습니다.
| 동등 품목 | 제품 세부 사항 |
|---|---|
| 00-877682-01 | FILTER, COPPER, SQUARE, CARMS |
