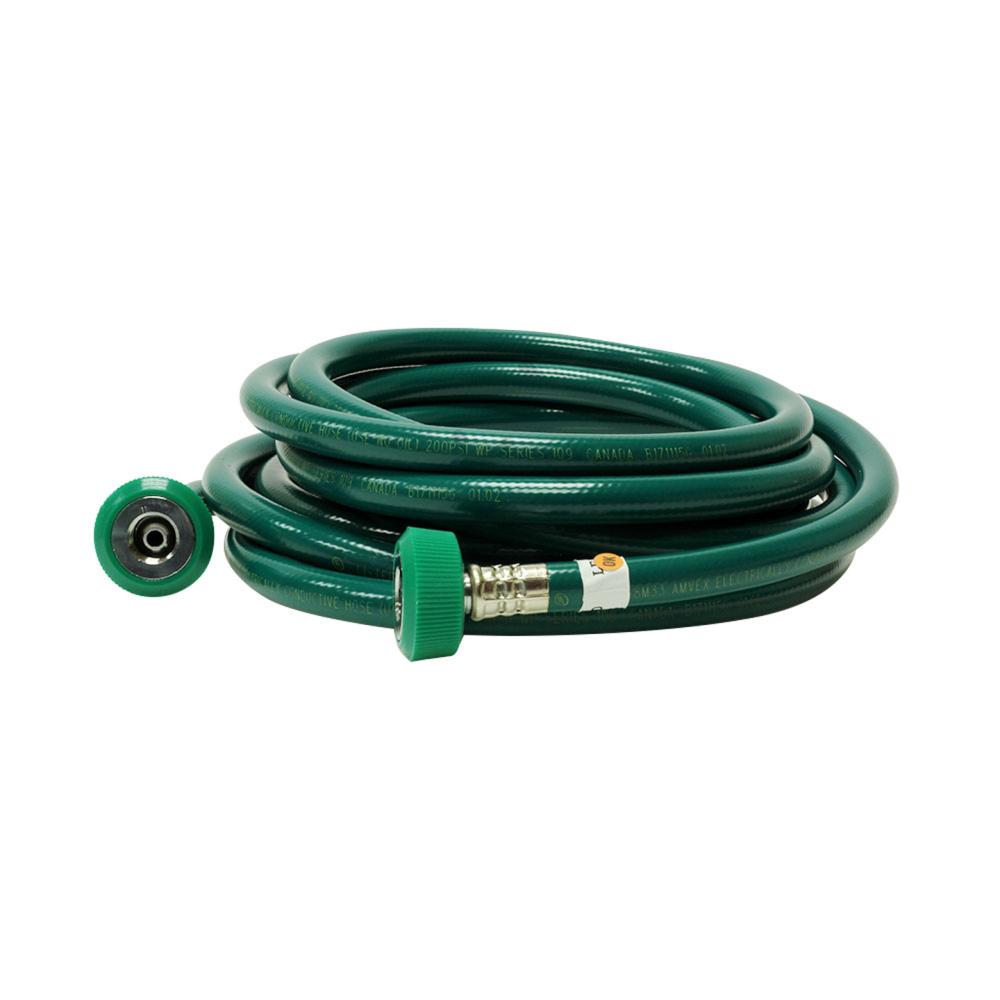

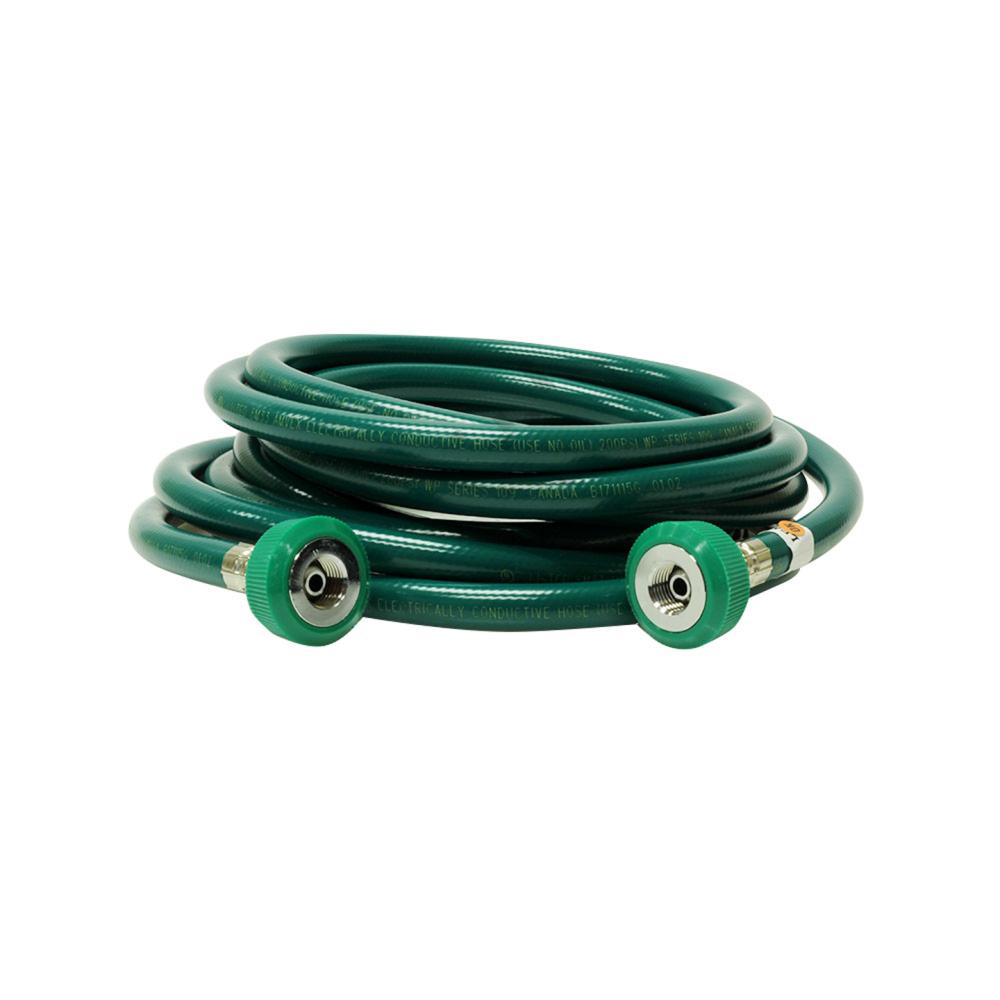

HOSE ASSY, O2 GRN DISS HIT N-G DISS HIT N-G 15FT LONG
| 0231-1118-810 | |
| Anesthesia Delivery | |
| Other Anesthesia Delivery | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- Connector symbols conform to Compressed Gas Association (CGA) V-5 standards
- Colors conform to CGA C-9 standards
- Components assembly and packaging are ISO 5359 compliant
- Does not contain any dirt dust visible oils grease lint fibers rust paper chips cleaning solutions machining coolant foreign materials and other contaminants
제품 개요
The Hose Assembly O₂ Green 15ft BCG DISS Hit N-G comes as a part of the Diameter Index Safety System (DISS) module of the Breathing Circuit Gas (BCG) in an anesthesia delivery machine. The DISS provides gases required for the patient from an external outlet. Hoses are provided at the wall outlet of DISS, specific to each gas and are color coded such that they can be distinguished easily. The assembly consists of the DISS hand tight female fittings as inlet and outlet fittings on both the ends of the hose. The hose is of conductive type and is made of Polyvinyl Chloride (PVC) without Di (2-ethylhexyl) phthalate (DEHP) as the plasticizer, thus avoiding the side effects of DEHP on the patients and the environment. It is used to provide oxygen to the breathing circuit and is provided with straight end fittings.
추가 기능
- Durable and reliable
- Aesthetic in appearance
- RoHS compliant
- GSPO
