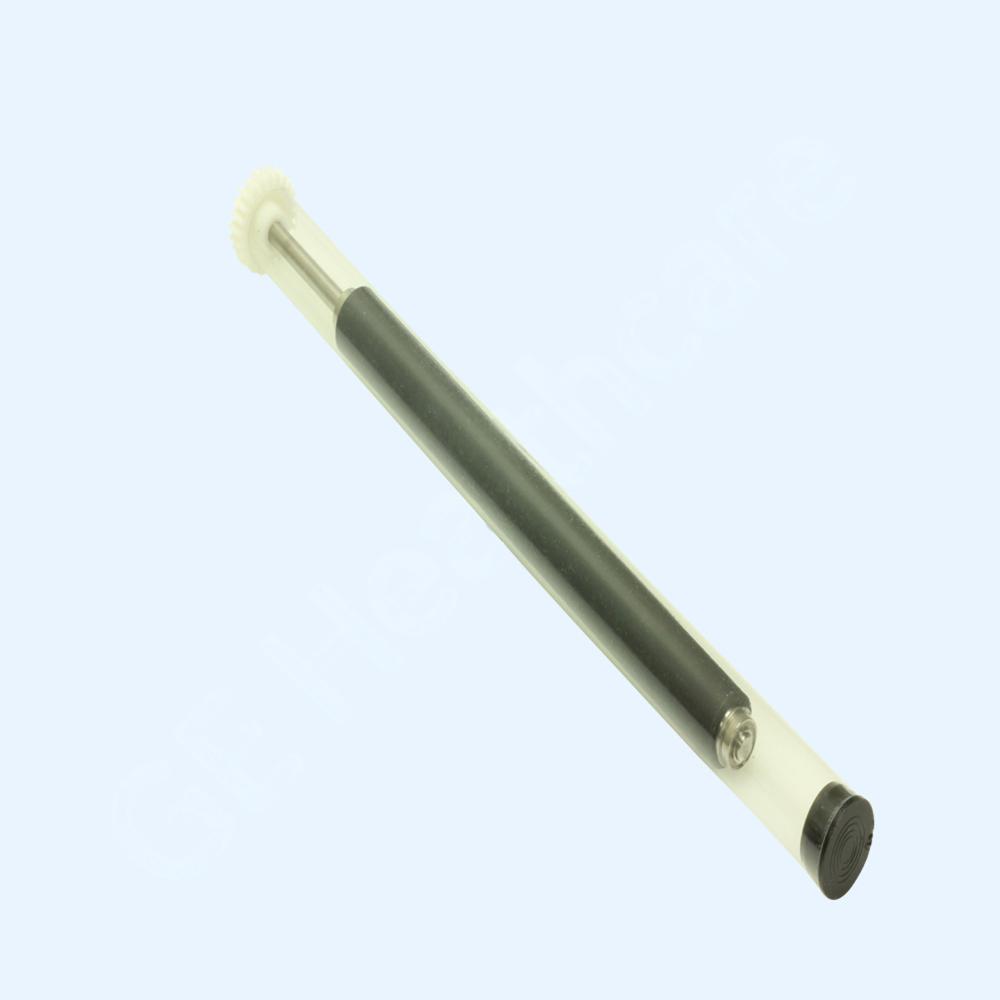

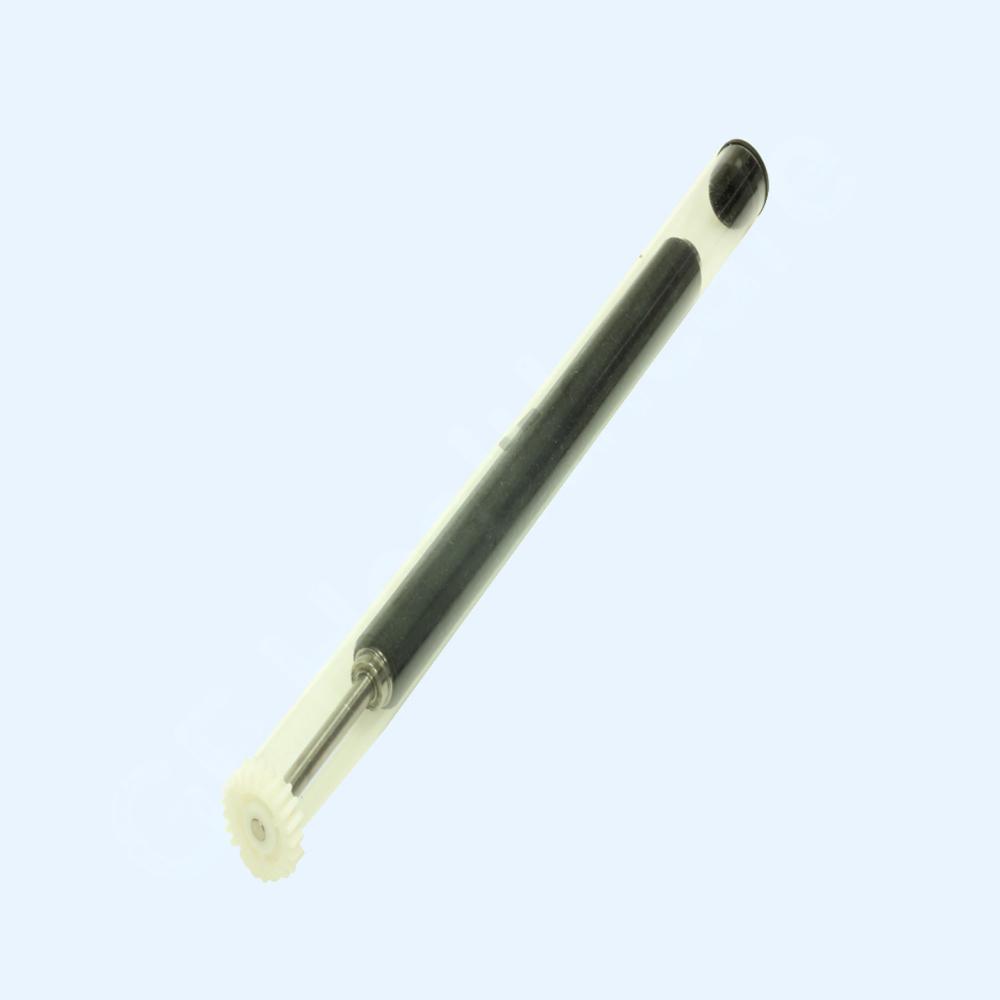

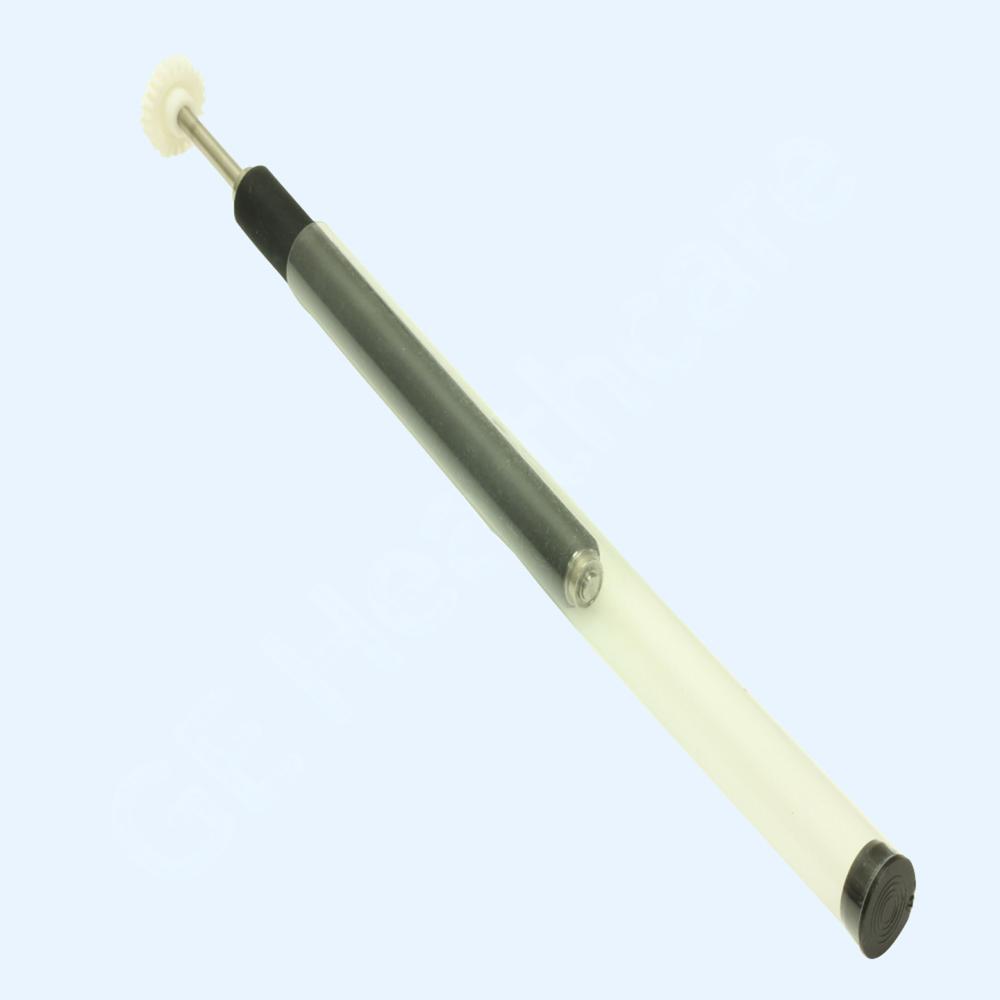

ASSY FRU ROLLER 170 SERIES
| 2015527-001 | |
| 250096 | |
| Maternal Infant Care | |
| Corometrics 170 Series | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- No foreign material or loose particles
- Highly reliable and durable
- It is a Field Replaceable Unit (FRU)
- It is a ROHS compliant
제품 개요
The Assembly Roller 170 Series is a Field Replaceable Unit (FRU) assembly which includes Print roller, Bearings, and Roller gear. This assembly is used in Maternal-Infant Care and other applicable devices. The bearings are pressed to the shaft of the printer roller, and the bearings are fully seated into the roller. The roller gear is pressed to the knurled section of the printer roller until fully seated. The knurl on the printer roller is sharp and there are 25 teeth on it to ensure the sharpness. The sleeve of the roller assembly is made up of silicone rubber with 40 shore A durometer, which makes it a softer rubber. There are no foreign material or loose particles in the assembly. The roller gear has the surface free of flash, sink marks, and flaws. The assembly is diligently designed for superior performance and reliability. This assembly is manufactured using a high precision technique which offers the good dimensional accuracy. The good dimensional accuracy of the assembly helps provide the precise fit in the required device. The product is an Innovation and technology which fits well into versatile customer needs. It is manufactured using high precision techniques which helps to achieve a good surface finish as well as good product consistency. The part is diligently designed for high performance and reliability. It is securely packaged inside a high quality packing box to avoid physical damage during transit and labeled with details about the product, Quality Assurance (QA) seal and shipment details.
추가 기능
- GSPO
동등한 부품 :
아래는 동등한 부품에 대한 자세한 정보입니다. 하이퍼 링크가없는 부품은 참조 용으로 만 나열되며 온라인으로 구입할 수 없습니다.
| 동등한 부품 | 제품 세부 사항 |
|---|---|
| 250096 | BEARING,FLANGED,.187 BORE, |
