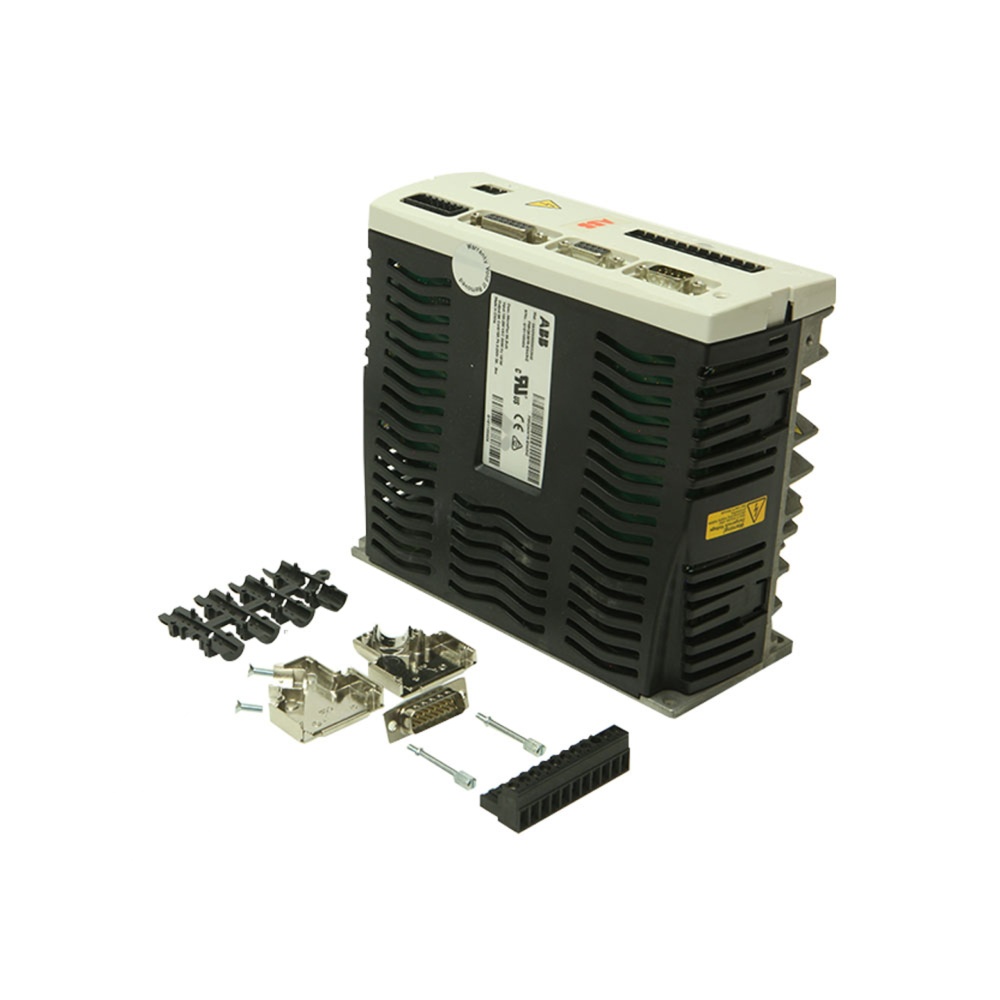

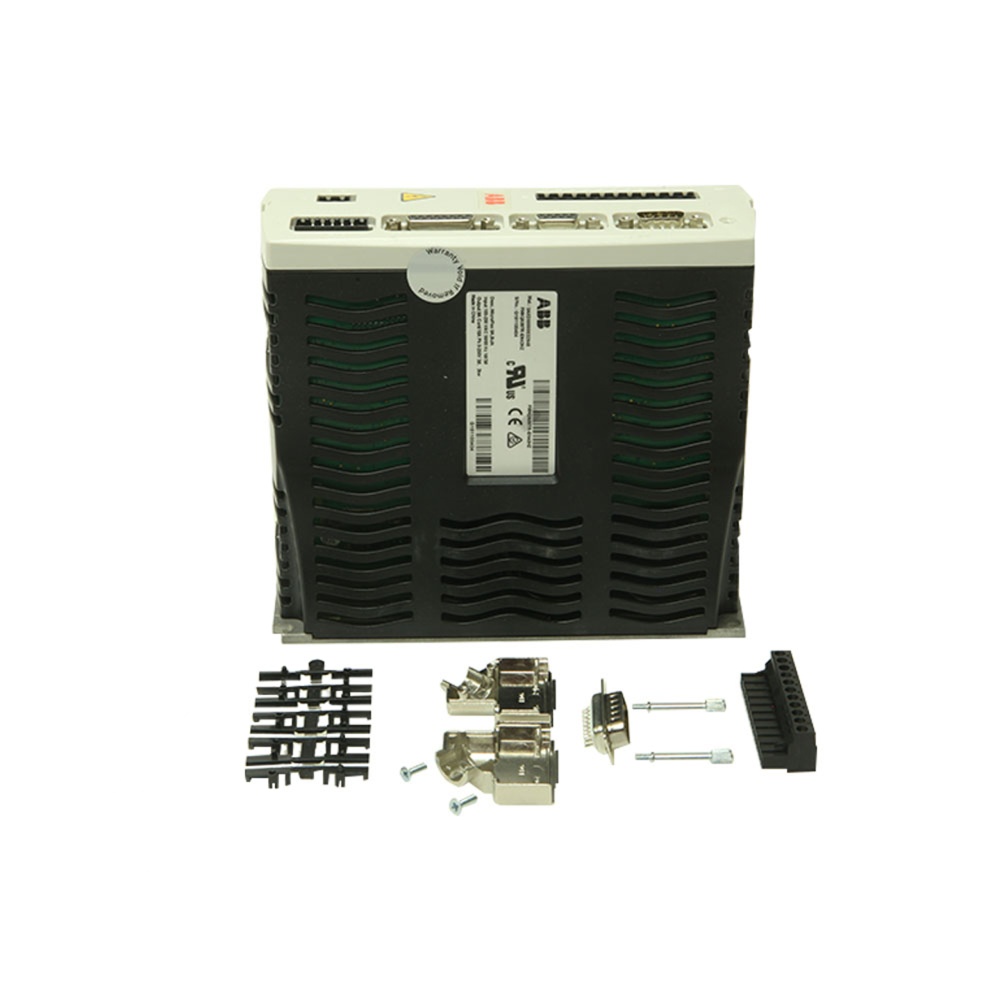

FRU ASSY T2100 MICROFLEX DRIVE ROHS WITH PARAM AND FIRMWARE COMMUTATION UPDATE
| 2026182-006 | |
| 2026182-002 2026182-004 | |
| Diagnostic ECG | |
| Stress ECG | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- Single axis AC brushless drive
- Range of models with continuous current ratings of 3A 6A or 9A
- Direct connection to 115 VAC or 230 VAC single-phase or 230 VAC three-phase supplies
- SSI or incremental encoder feedback
제품 개요
The Treadmill T2100 Motor Controller MicroFlex Drive is used in the T2100 Treadmill drive motor to control motion, which is part of the Diagnostic ECG system. The MicroFlex drive is designed to serve the needs of machine designers and manufacturers. Baldor products have both UL and CE approvals. It is a flexible, versatile, compact control for brushless servomotors. A servo drive receives a command signal from a control system, amplifies the signal, and transmits electric current to a servo motor in order to produce motion proportional to the command signal. Typically, the command signal represents a desired velocity, but can also represent a desired torque or position. This digital servo control can be tailored to suit many applications. It can accept 0-10 VDC input, standard 10 VDC input, current loop input, pulse and direction input or electronic hand wheel input. Some flexible options are a CAN bus interface (for resolver feedback only), internal or external region, or with customer provided 24 VDC to maintain logic power. The flex drive can be integrated with the Baldor motion controllers or to any industry standard motion controller. The MicroFlex drive is labeled with the ABB part number and FMI correction label. This drive is being used in UL Voluson P8, MIC Giraffe™ OmniBed, UL LOGIQ S8, MS Dash™ 4000, ARC Aisys and many other devices.
추가 기능
- Velocity and current control with step and direction input for position control
- Auto-tuning wizard (including position loop) and software oscilloscope facilities
- 2 optically isolated digital inputs
- 1 optically isolated digital output
- 1 general-purpose analog input (can be used as a speed or torque command reference)
- RS232 communications
- GSPO
동등 품목:
아래는 동등한 부품에 대한 자세한 정보입니다. 하이퍼 링크가없는 부품은 참조 용으로 만 나열되며 온라인으로 구입할 수 없습니다.
| 동등 품목 | 제품 세부 사항 |
|---|---|
| 2026182-002 | ASSY T2100 MICROFLEX DRIVE W/ SETUP FILE |
| 2026182-004 | FRU ASSY T2100 MICROFLEX DRIVE ROHS W/ SETUP FILE |
