FRU DASH 10IN ALRM W/LENS W/BLANK (PUR)
| 2026653-025 | |
| 2004229-001 | |
| Patient Monitoring | |
| Patient Monitors | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- Good dimensional stability
- Light weight and portable
- Easy to fit and disconnect
- Enhanced durability and reliability
제품 개요

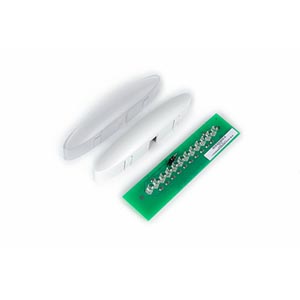

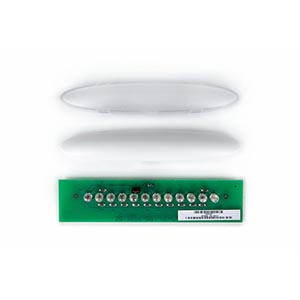

The Alarm Light Assembly DASH 4000, is a specially designed product, intended for use in Dash 4000™ patient monitoring equipment and other medical devices as applicable. The Dash 4000 Alarm Light provides a visual alarm for the monitor. The assembly consists of 6 red LEDs, 6 yellow LEDS and a connector. In the Dash, open-drain outputs on the Display Adapter Board provide low side drive to the LEDS. The alarm light is interfaced to the processor/power management board via the Display Flex. The LED indicators which flash a red color for critical and warning status of patient and yellow color for all other alarm status of the patient. This indication will be reflected to the display bezel of the patient monitor system. The products are made from the material which offers reliable operation, efficient functioning and longer life time. It is tested to work at an extreme atmospheric condition. The product is securely packaged inside a high quality packing box to avoid physical damage during transit.
추가 기능
- It is a ROHS compliant product
- GSPO
동등한 부품 :
아래는 동등한 부품에 대한 자세한 정보입니다. 하이퍼 링크가없는 부품은 참조 용으로 만 나열되며 온라인으로 구입할 수 없습니다.
| 동등한 부품 | 제품 세부 사항 |
|---|---|
| 2004229-001 | PCB DASH 4000 ALARM LIGHT |
