POWER-OFF BRAKE ASSY
| 2391862 | |
| X-Ray | |
| Definium 8000 | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- Made of high quality material
- High safety protection
- Electromagnetic technology
- RoHS compliant
제품 개요

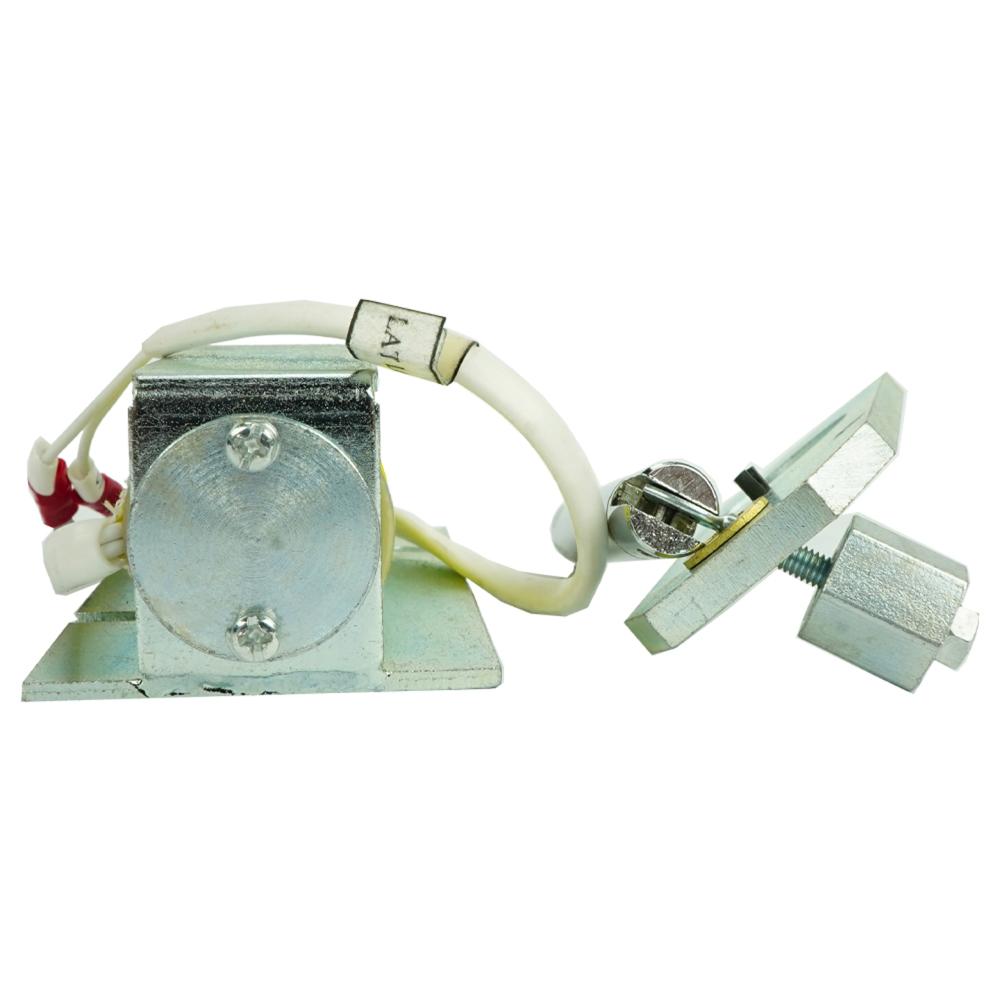

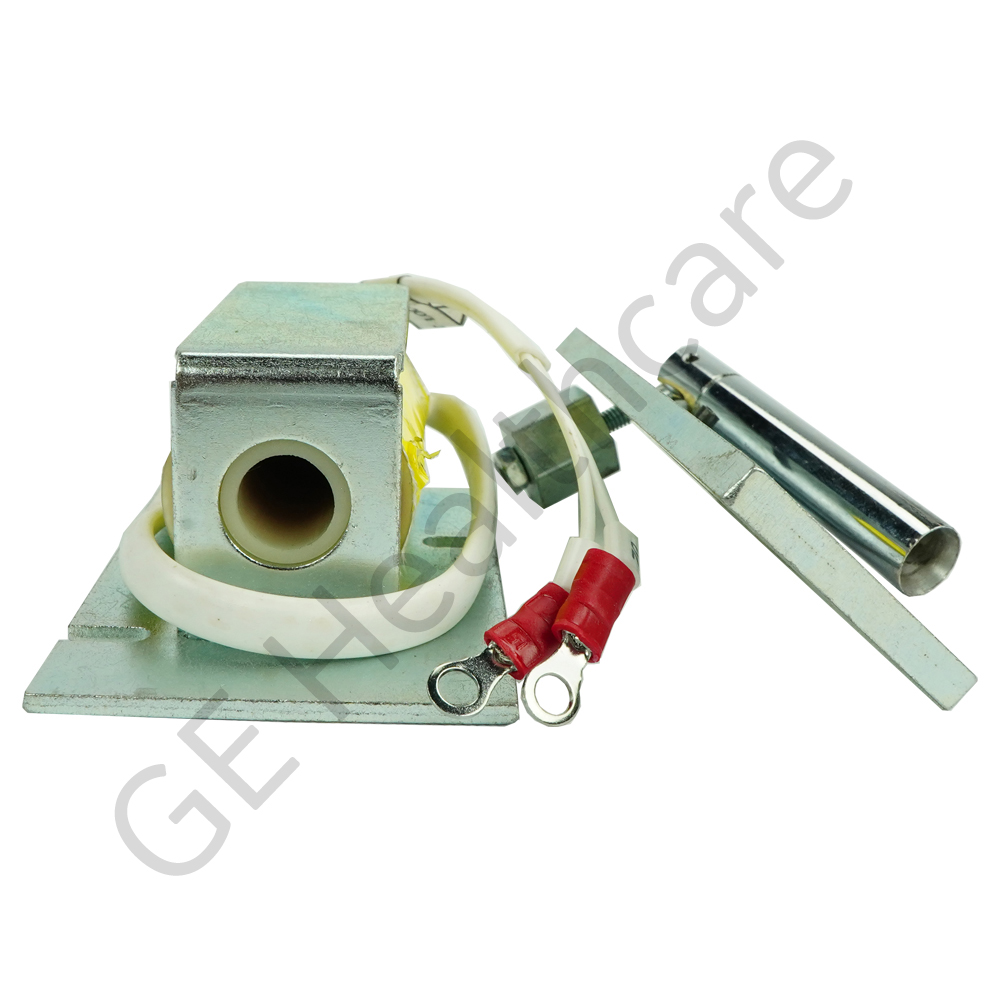

The Power-Off Brake Assembly consists of a bracket assembly, a rectangle brake coil assembly, a RoHS compliant wire, a coil frame, a thin wall soft pipe, a core axle, a coil connecting axle, a pan head screw, a spring lock, a flat washer, a guide nut, a hexagonal nut and a brake plate assembly. These parts together make up the completed assembly. The power-off brake is used in the OTS carriage system to fix the component in position. When the lateral lock system button is pressed, power passes to the lateral lock unit and moves the lock rod backwards. This part is an electromagnetic type lock and remains activated when the power is off. This part also acts as a safety system in OTS carriage. The assembly is being used in the machines like Revolution XR/d, AMX 4+, Definium 8000, Proteus XR/a, Discovery XR656, Optima XR220amx, etc.
추가 기능
- GSPO
