16 Slice GDAS Converter Card 2404393U
2404393U | |
Computed Tomography (CT) | |
Other Computed Tomography (CT) | |
GE HealthCare | 되사기 |
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오. p>
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- Converter board found in wide range of devices
- Good electrical conducting facility
- High quality interconnected electronic components
- Highly reliable
제품 개요

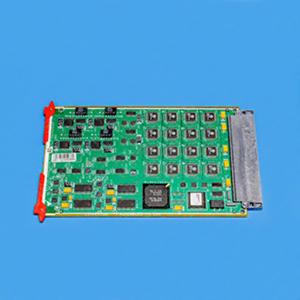

The 16 Slice Global Data Acquisition System (GDAS) Converter Card is used in CT scanners and other medical systems. It is a printed circuit board which processes low level current signals from 128 channels of CT X-ray detector photodiode and convert them into 128 voltage/charge signals. This circuit board is comprised of a 2 GDAS ASICs, 32-bit floating point DSP, 100uA bias current circuit for the GDAS ASICs, GDAS ASIC Bridge (GAB) FPGA, CAN Transceiver, I2C serial digital output temperature sensor, bootable 16 Mbit flash memory, 128 Mbit SDRAM ICs, regulators, local ferrite beads, and digital I/O circuitry. The signal from detector output is amplified by the GDAS ASIC. The flash memory holds the necessary ASICs input offset voltage trim values, firmware version, date, time, vector table, checksum, FPGA configuration file and the converter board serial number. The on board temperature sensor (U5) monitors the board ambient temperature to ensure that the board is operating in its proper temperature range. The converter board shall not constitute a safety hazard to personnel using or maintaining the CT equipment. The product is securely packaged inside a high quality packing box to avoid physical damage during transit.
추가 기능
- Easy to install
- RoHS compliant
