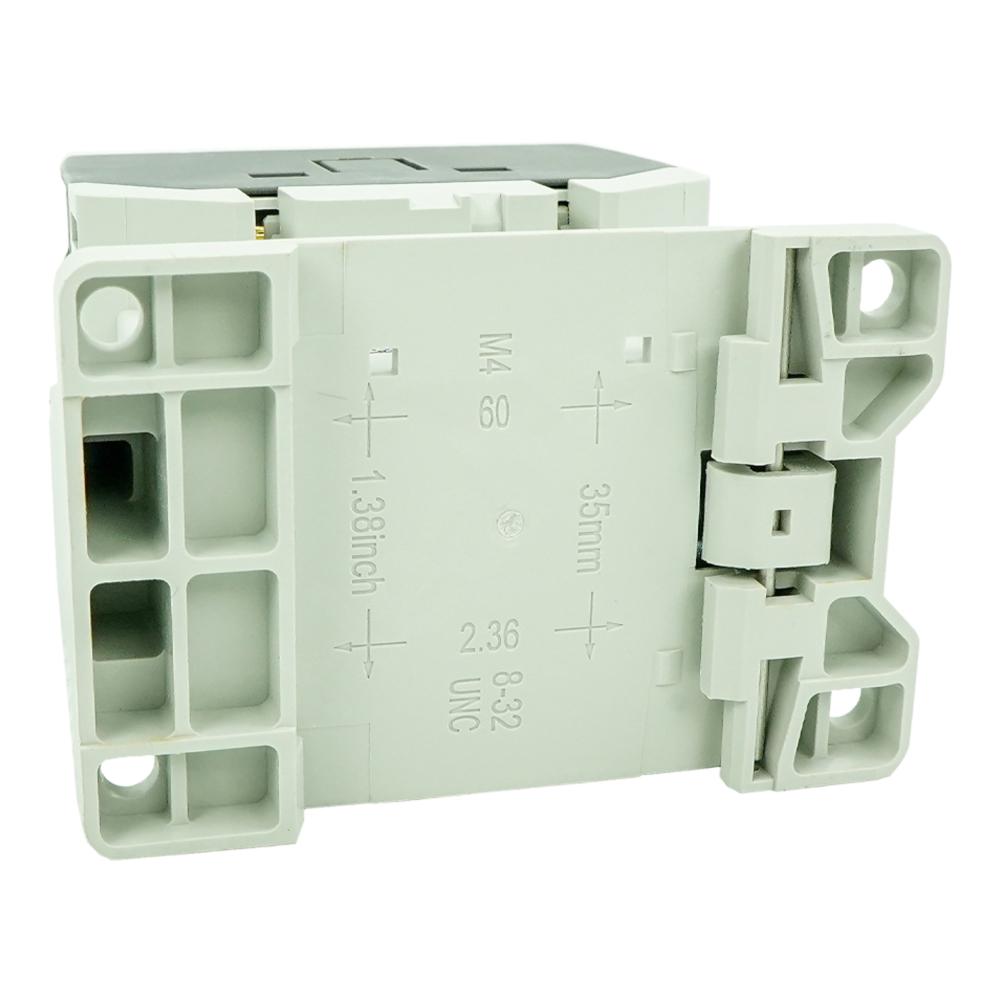

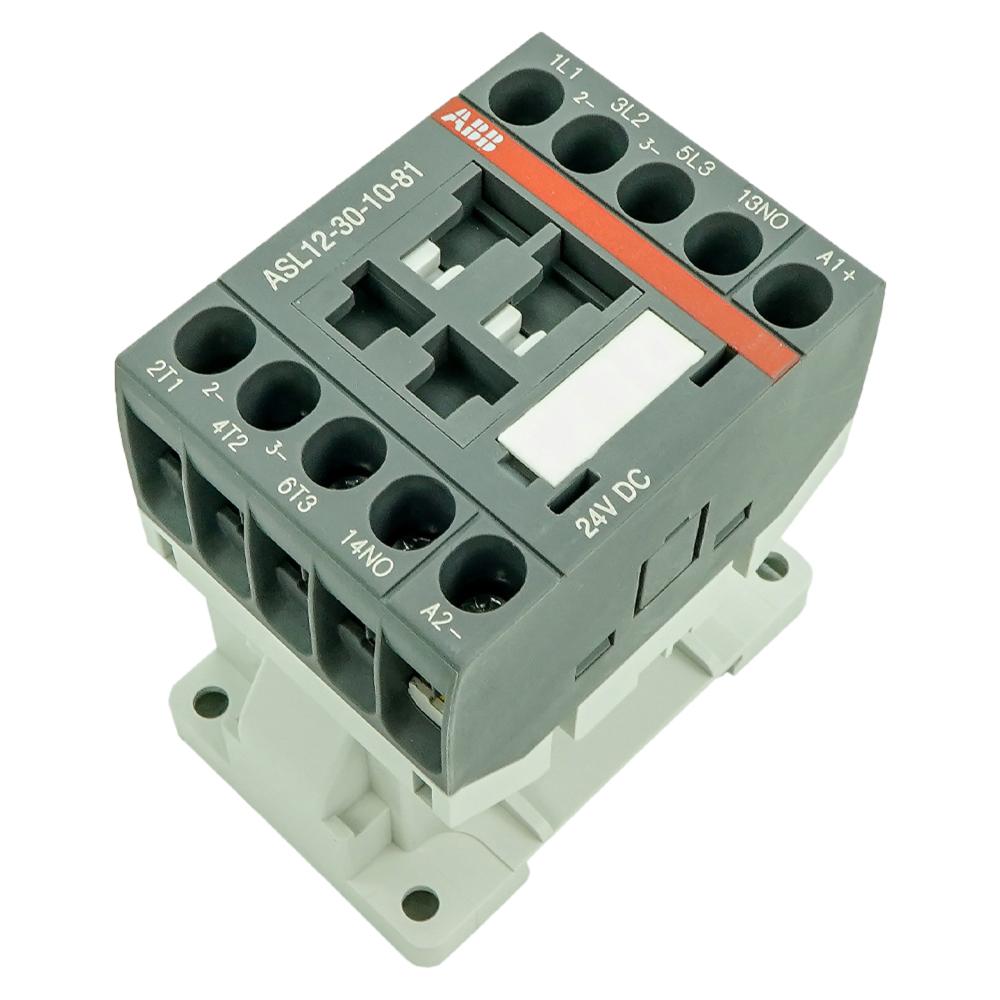

Kt, ABB contactor
| 5421424 | |
| Computed Tomography (CT) | |
| Optima 660 | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- 3-pole contractors with screw terminal
- NO (Normally Open) Built-in auxiliary contact
- Low Coil Consumption
- Rail mounted no tools required
제품 개요
ABB 3 Pole contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. This 1-stack 3-pole contactor is known as the block type design. The contactors have screw terminals, and contain 3 main poles and 1 built-in auxiliary normally open (NO) contact. The Control circuit of this contractor is DC operated with a solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected. The contractor is rail mounted and does not need any tools to be installed. This ABB 3 Pole Contactor is used with Computed Tomography (CT) systems.
추가 기능
- High Operational Voltage
- GSPO
