SPARE PART, LATCH, E-MODULES
| M1021039-S | |
| M1021039 | |
| Patient Monitoring | |
| Modular Monitors | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- High stiffness
- Good chemical resistance
- Low warpage
- High strength
제품 개요

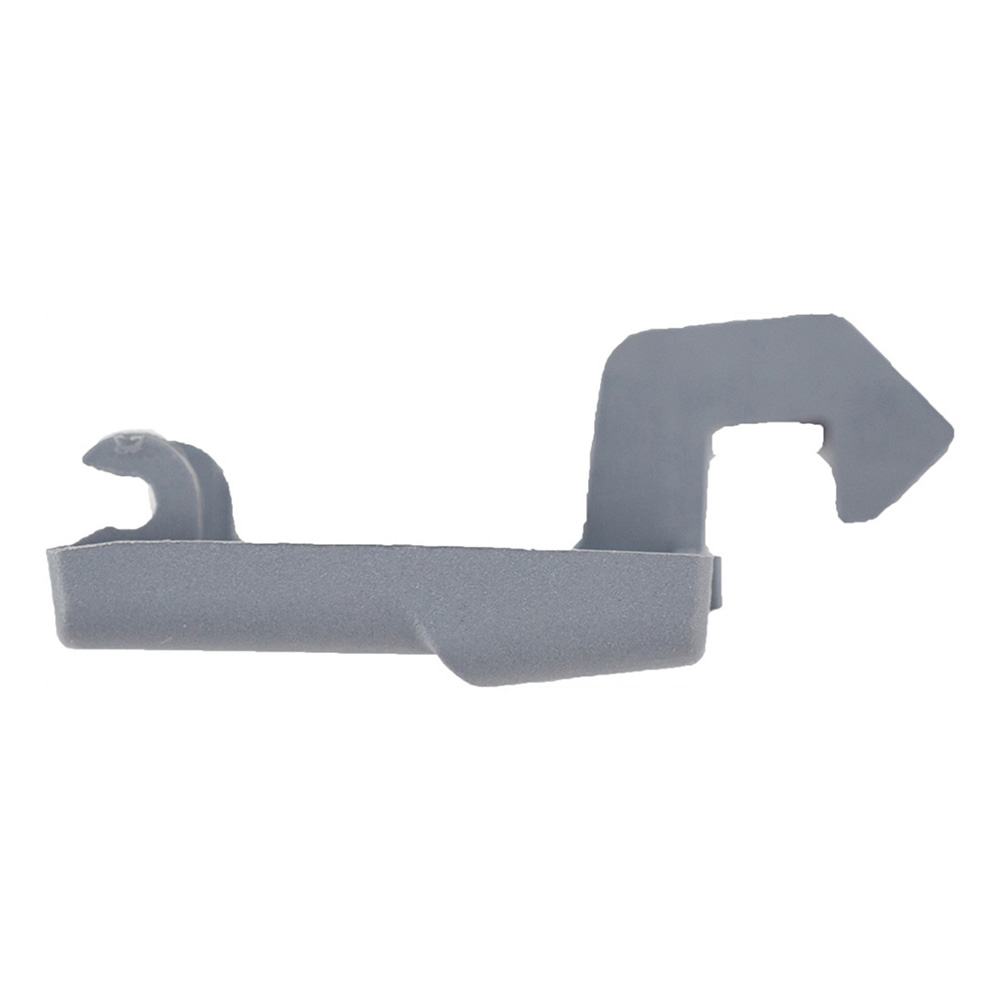

The E-Modules Latch is one of the major components in the E-BIS module assembly. It is assembled along with the front chassis unit of the E-BIS module assembly. The latch is made up of PA6/66+GF40, Grivory gv-4h material, which is a high quality plastic material. Grivory GV-4H is a 40% glass-fiber reinforced thermoplastic material. This material offers a high stiffness characteristic to the latch, which gives the product a high resistance to deformation in response to an applied force. The unique composition of the material offers a good surface finish to the product. The part number is clearly printed in the inner side of the latch for easy identification. The Injection molding manufacturing process helps to achieve good product consistency. This latch is free of dust, grinding, lubricants or other impurities. The E-BIS module is used to monitor the state of the brain in the OR, ICU and procedural sedation location. In addition to the BIS, the monitors display one channel of raw EEG, suppression ratio and signal quality index (SQI) and EMG.
추가 기능
- Good surface finish
- Free of dust lubricants
- RoHS compliant
- GSPO
동등 품목:
아래는 동등한 부품에 대한 자세한 정보입니다. 하이퍼 링크가없는 부품은 참조 용으로 만 나열되며 온라인으로 구입할 수 없습니다.
| 동등 품목 | 제품 세부 사항 |
|---|---|
| M1021039 | PART, Latch, E-Modules, Injection molded |
